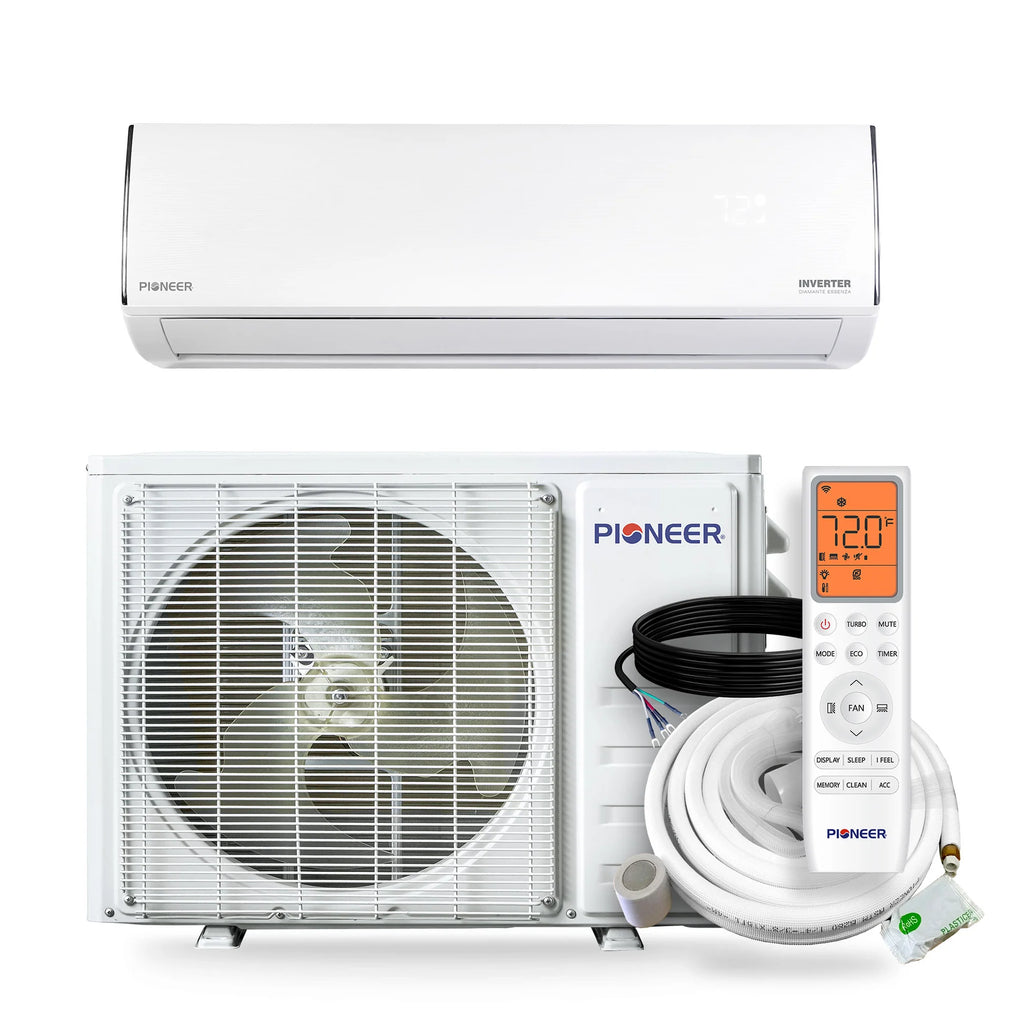

    • Name : Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
    • Vendor : The Climate Shop
    • Type : Unknown Type
    • Manufacturing : 2025 / 07 / 28

    Estimated Delivery Date : -

    Return rules summary
    • 30 days return guarantee
    • Free return shipping
    • No restocking fee
    • Easy refund policy

    Guaranteed safe checkout

    amazon paymentsapple paybitcoingoogle paypaypalvisa
    Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
    - +

    Summary

    • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
    • Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
    • Heating capacity: 11,500 BTU/H with 8.3 HSPF2 / 3.2 COP2 efficiency
    • Voltage: 208/230V, 60Hz, 1Ph
    • High Wall-Mounted Ductless Air Conditioning & Heating System
    • Variable-Speed DC Inverter Driven Performance
    • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
    • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

    Features

    • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
    • Dual-Drainage Ports
    • Washable, Reusable Air Filters
    • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
    • Functional Remote with:
      • ECO and SLEEP Modes, for Energy-Conservation
      • Timer On/Off Control
      • TURBO, for Times of High-Demand
      • Self-Clean Cycle
      • MEMORY, to Recall Favorite Settings
      • IFEEL, to Detect and Adjust to Local Temperature

    Technical Information & Performance

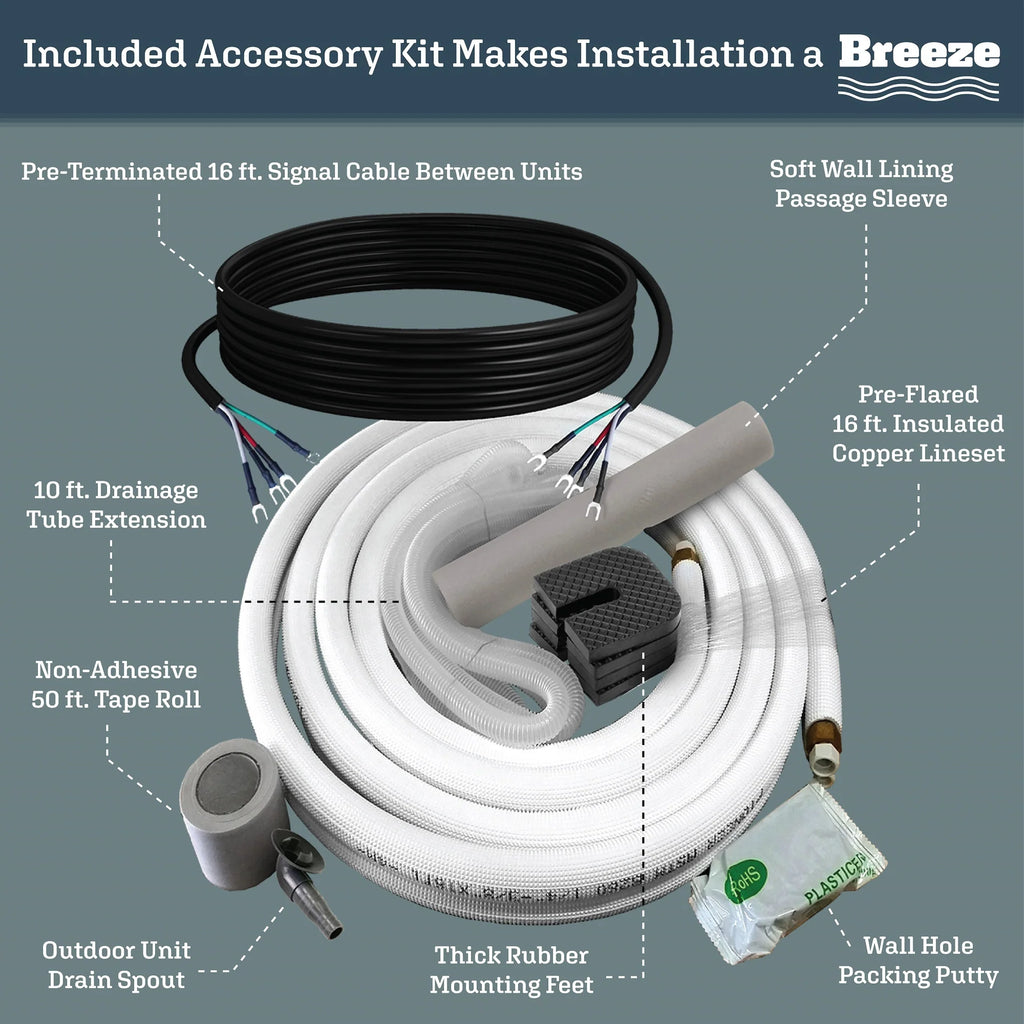

    • System Kit
      • Power Supply: 208~230V, 60Hz, 1Ph
      • Cooling Rated Capacity: 11,500 BTU/h
      • Cooling Capacity Range: 2,050~12,000 BTU/h
      • Cooling SEER2: 17.0 BTU/W.h
      • Cooling EER2: 9.5 BTU/W.h
      • Heating Rated Capacity: 11,500 BTU/h
      • Heating Capacity Range: 2,050~12,500 BTU/h
      • Heating HSPF2 (Region IV): 8.3 / 7.1 BTU/W.h
      • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.75 W/W
      • Refrigerant Type: R-32
      • Recommended Room Size: 200~450 sq ft
      • Minimum Room Size: 20 sq ft
      • Minimum Installation Height: 6 ft
      • Piping Diameter: 1/4-3/8"
      • AHRI Reference: 217048735
    • Indoor Unit
      • Part Number: WT012GLUI17HLD
      • Air Flow (Turbo/Hi/Med/Lo/Mute): 294 / 264 / 235 / 206 / 159 CFM
      • Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 42 / 39 / 35 / 33 dB(A)
      • Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
      • Carton Dimensions (WDH): 33-1/8  x 10-1/4 x 12-3/8 Inches
      • Net / Gross Weight: 16.5 / 20.9 lbs

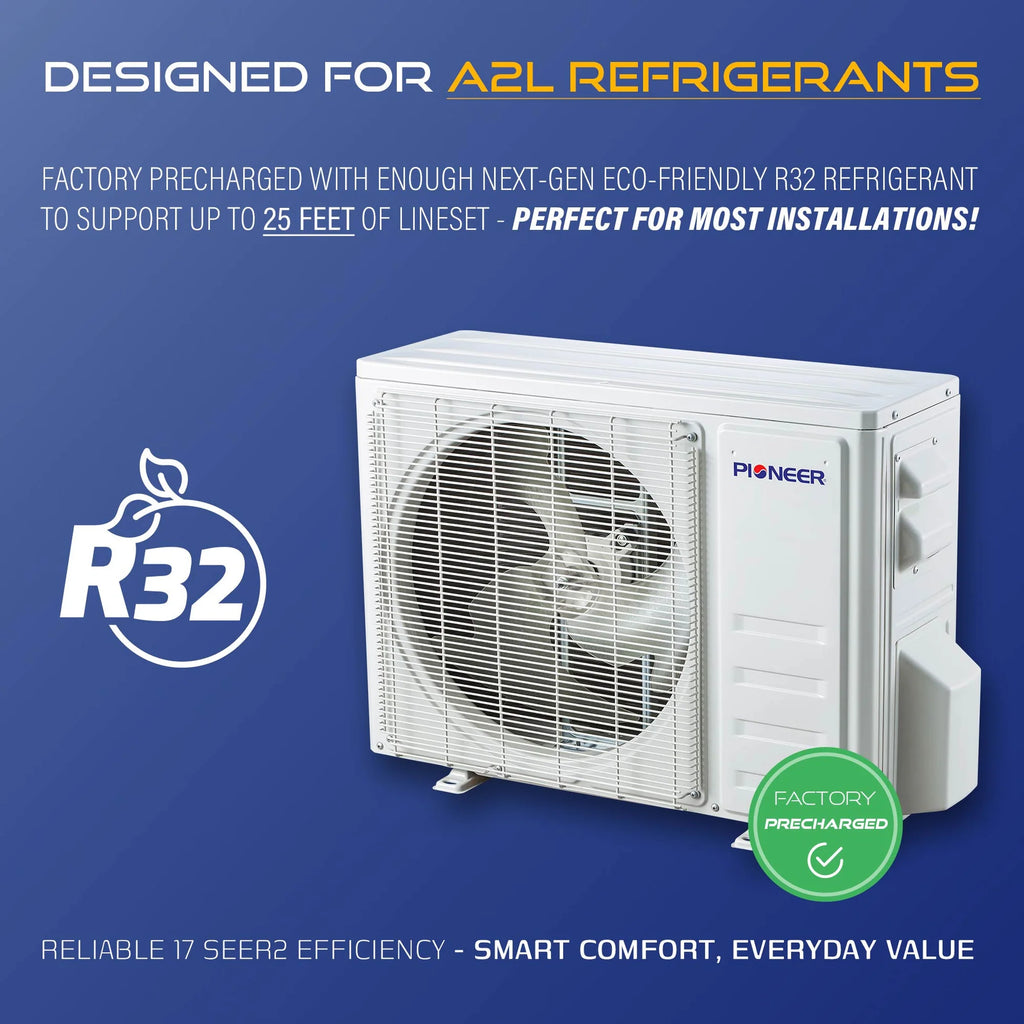

    • Outdoor Unit
      • Part Number: YN012GLUI17RPD
      • Breaker Needed: 15A (double-pole)
      • Sound Level: 55 dB(A)
      • Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
      • Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
      • Net / Gross Weight: 50.7 / 61.7 lbs
