Summary

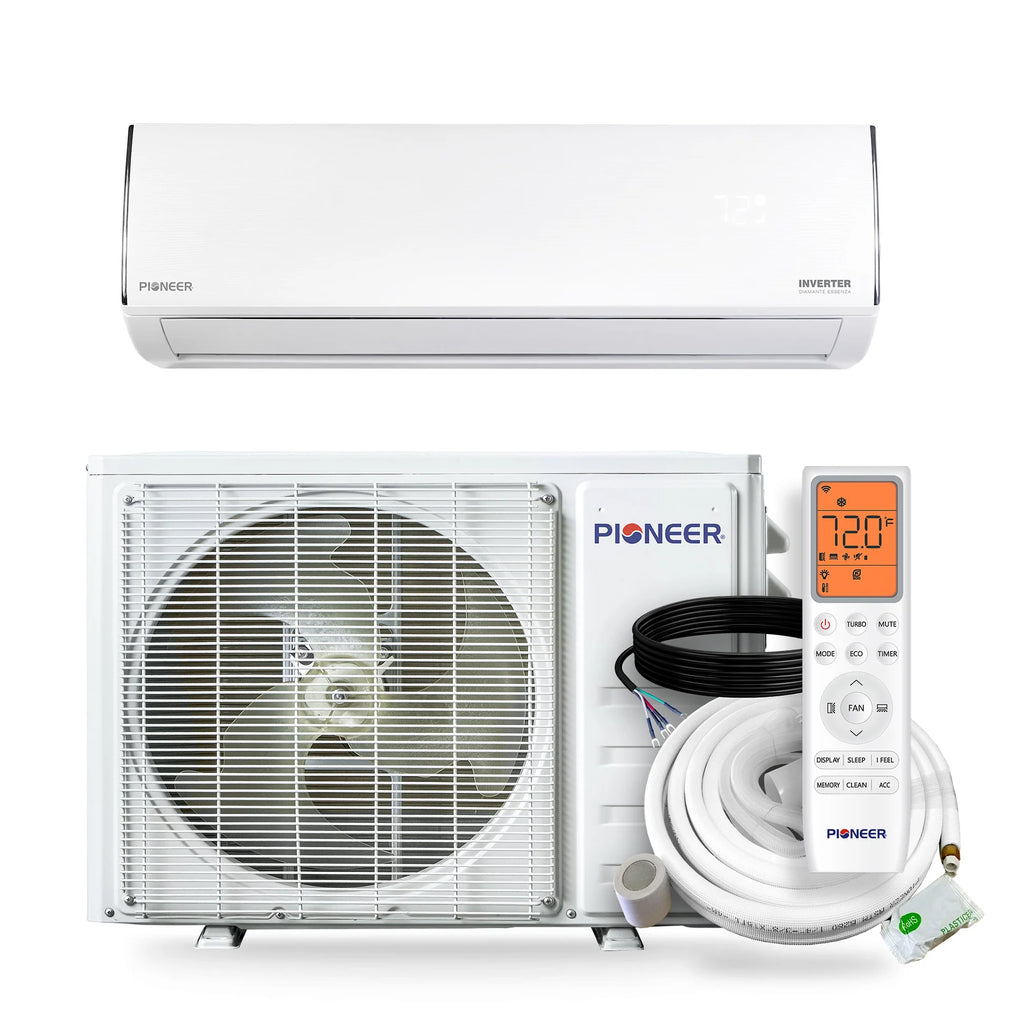

• Standard Efficiency Diamante Essenza™ Ductless Mini Split Heat Pump System
• Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 11,500 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

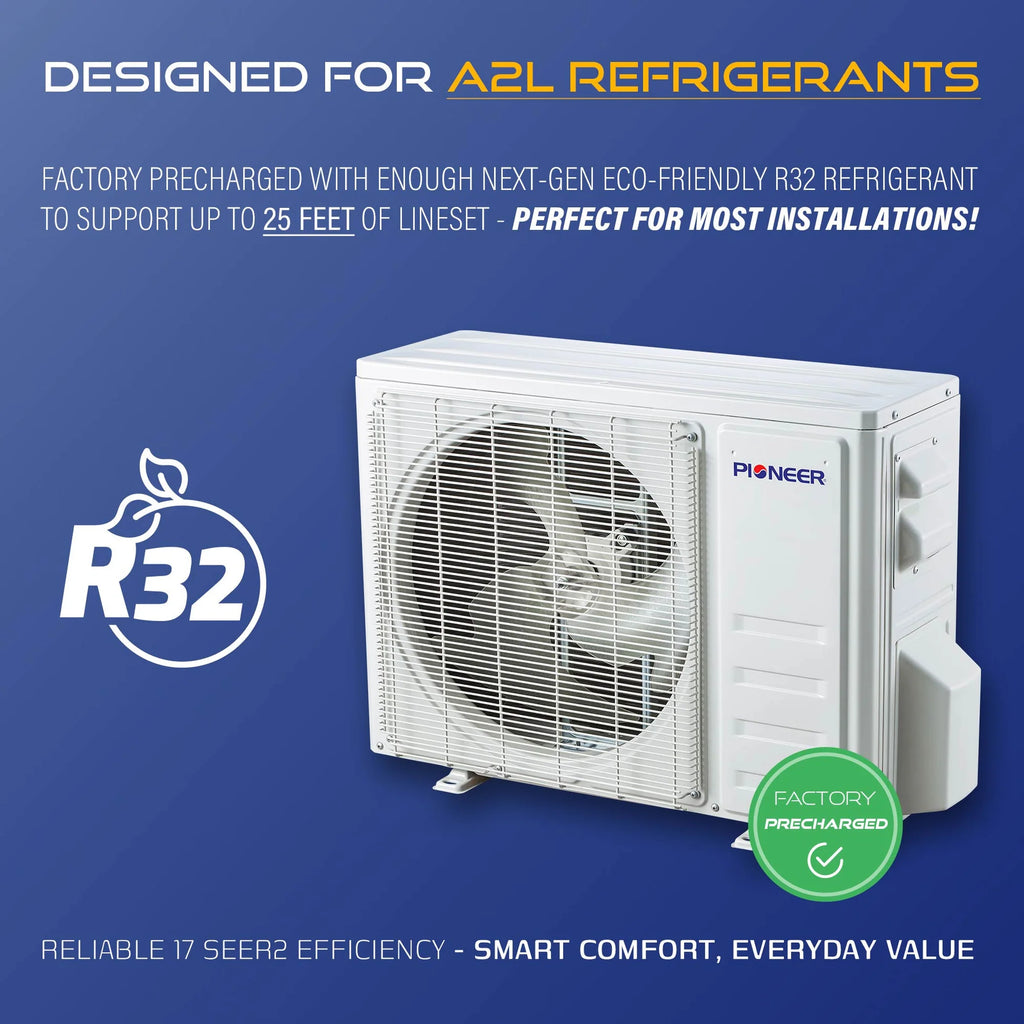

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Standard Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

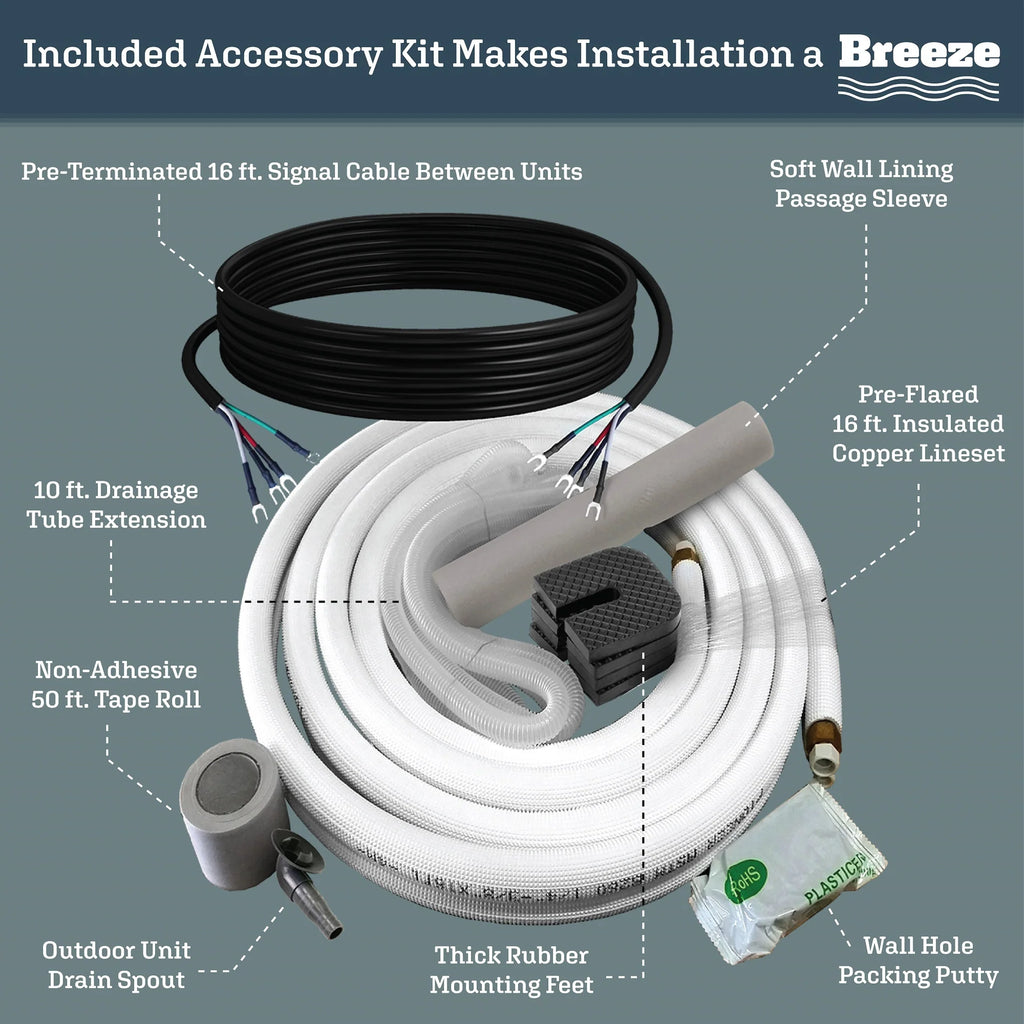

• System Kit
  • Power Supply:110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 11,500 BTU/h
  • Cooling Capacity Range: 2,050~12,000 BTU/h
  • Cooling SEER2: 17.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 11,500 BTU/h
  • Heating Capacity Range: 2,050~12,500 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.1 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
  • Refrigerant Type: R-32
  • Recommended Room Size: 200~450 sq ft
  • Minimum Room Size: 20 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4-3/8"
  • AHRI Reference: 217048734
• Indoor Unit
  • Part Number: WT012ALUI17HLD
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 276 / 265 / 241 / 224 / 206 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 36 / 33 / 29 dB(A)
  • Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
  • Carton Dimensions (WDH): 33-1/8 x 10-1/4 x 12-3/8 Inches
  • Net / Gross Weight: 16.5 / 20.9 lbs
• Outdoor Unit
  • Part Number: YN012ALUI17RPD
  • Breaker Needed: 20A (single-pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
  • Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
  • Net / Gross Weight: 50.7 / 61.7 lbs
