Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 20 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 9.0 HSPF2 / 3.2 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)
• AHRI Estimated Annual Operating Costs:
  • Cooling: $152.00
  • Heating: $507.00

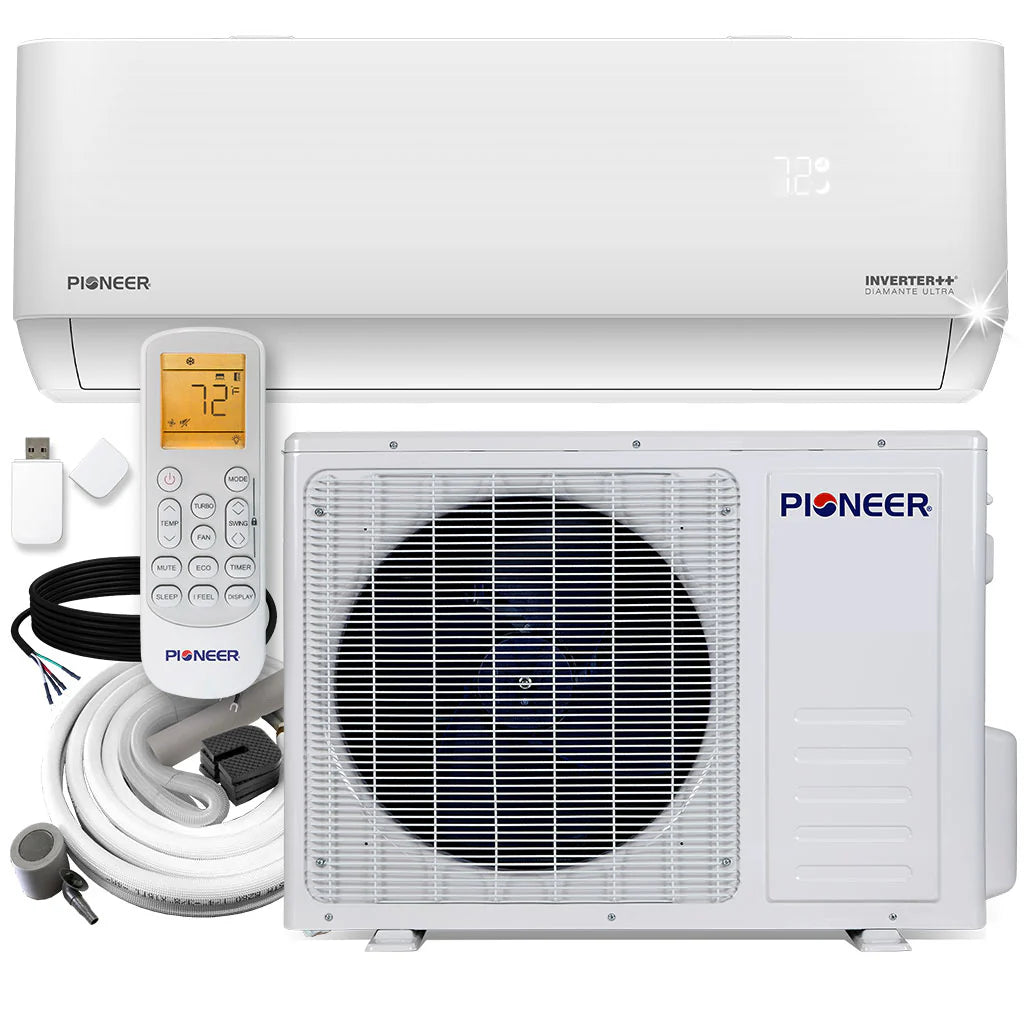

What's Included

• Indoor Unit
• Outdoor Unit

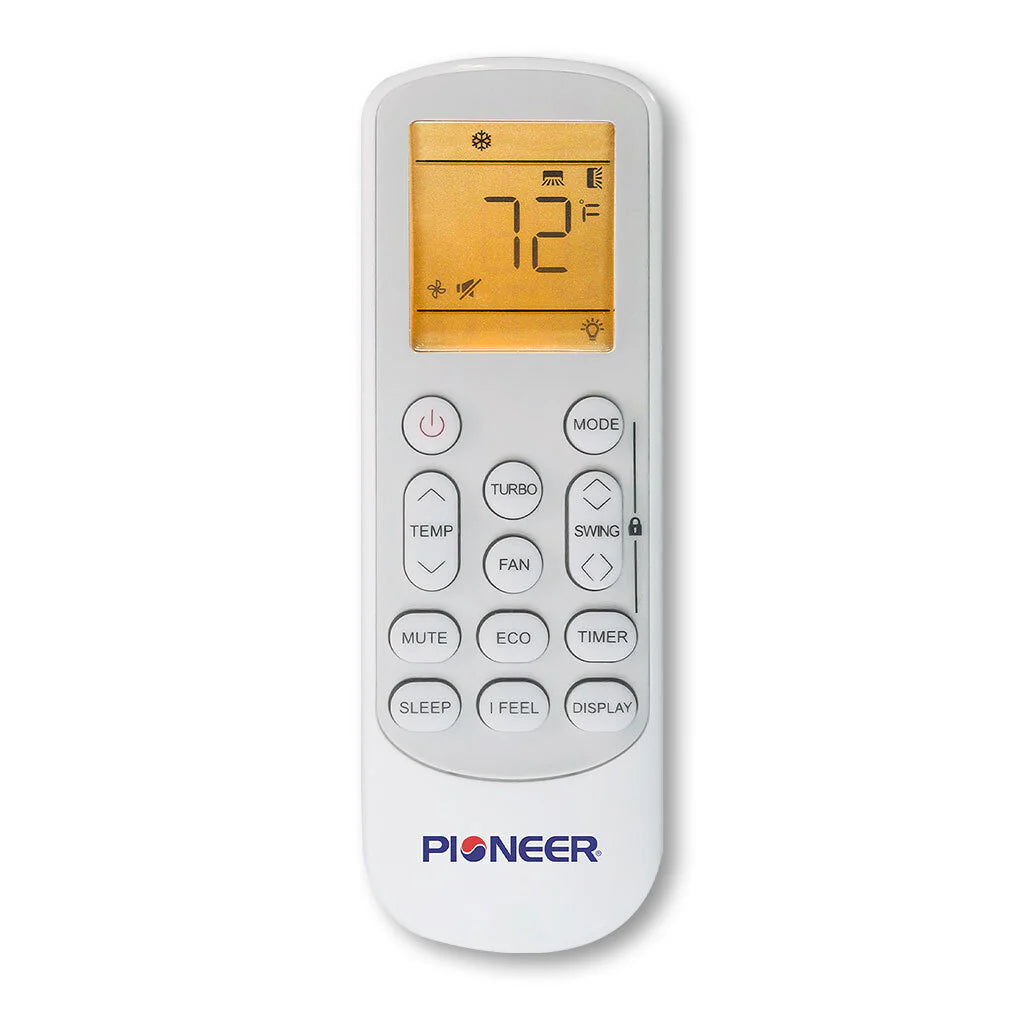

• Wireless Remote Control (with wall holder and batteries)

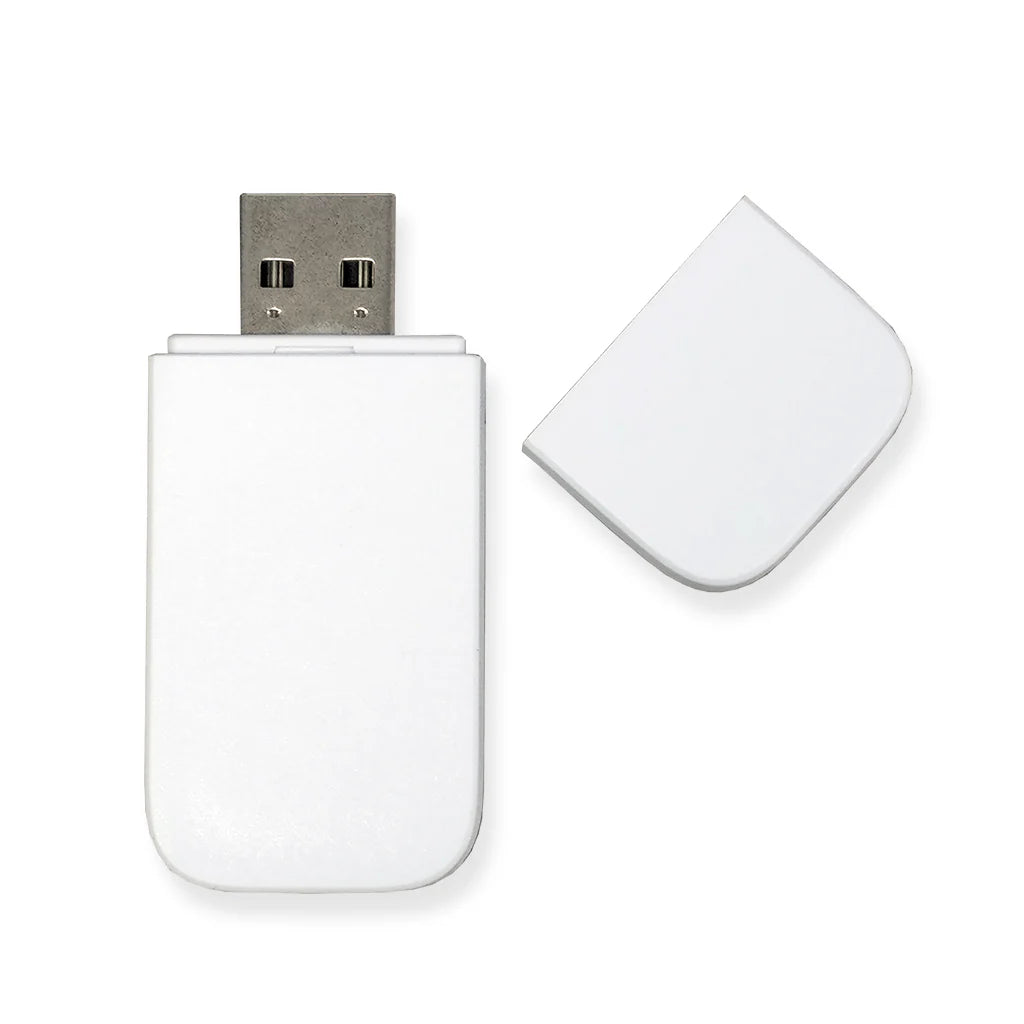

• Internet Control Module

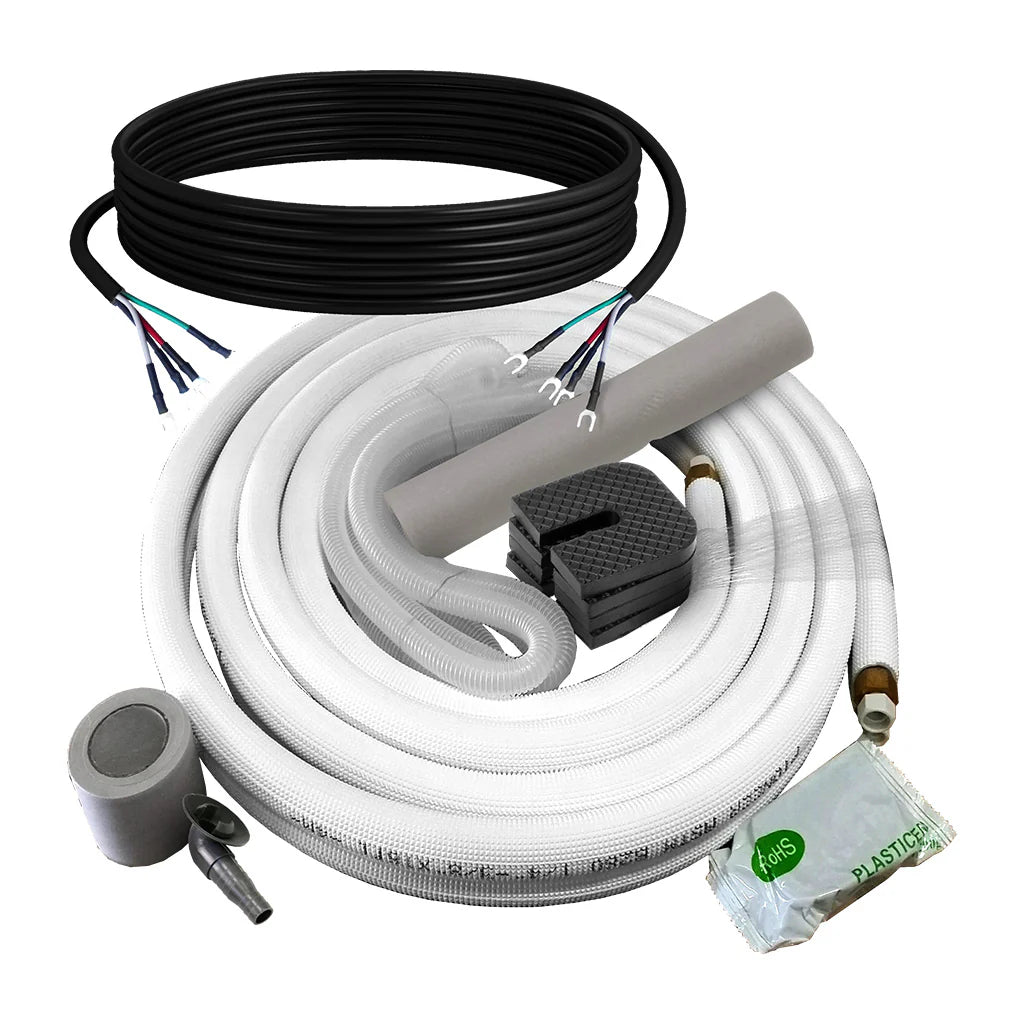

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Technical Information

Performance Data

• Power Supply: 230V, 60Hz, 1Ph
• Cooling Rated Capacity: 23,000 BTU/h (1.9 Ton)
• Rated Power Input (Cooling): 1920W
• Cooling SEER2: 20 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 24,000 BTU/h (2 Ton)
• Rated Power Input (Heating): 2050W
• Heating HSPF2: 9 BTU/W.h
• Heating C.O.P.: 3.2 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 600~950 Sq.Ft

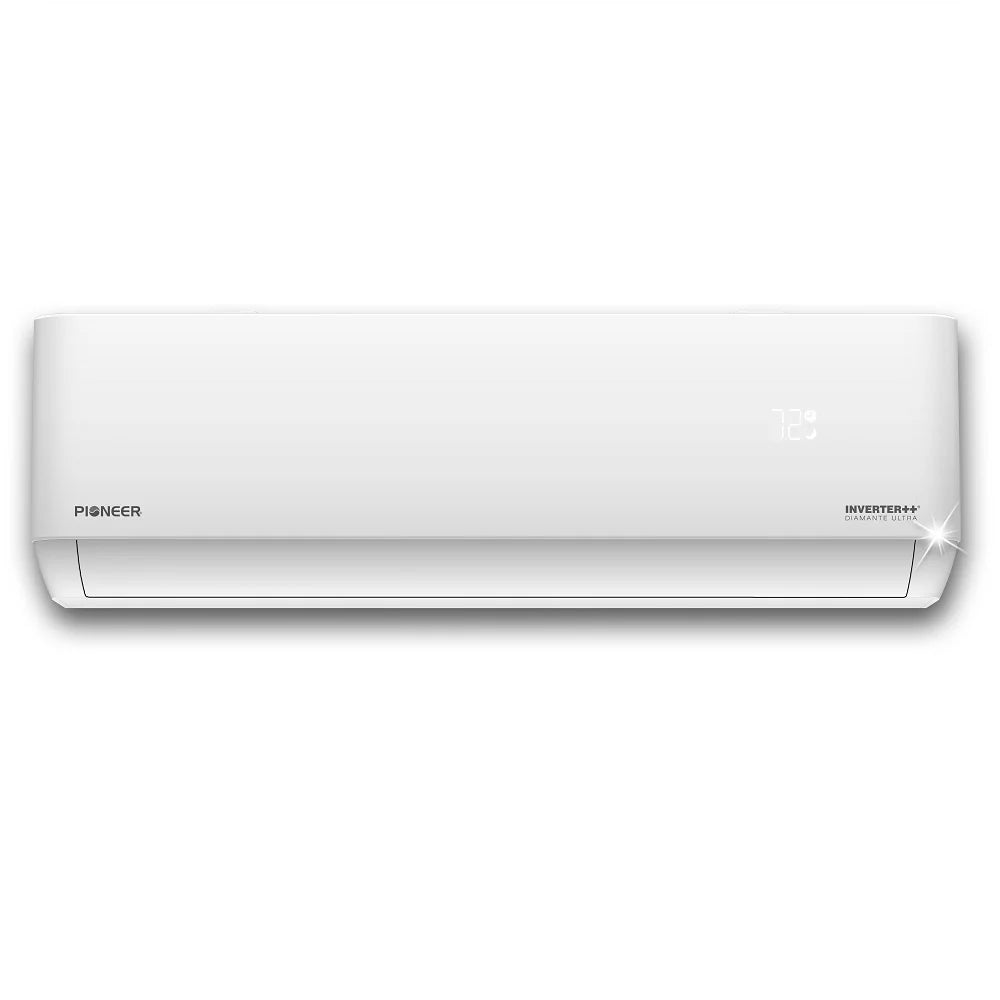

Indoor Unit Data

• Part Number: WT024GLFI22HLD
• Air Flow (Hi): 735 / 618 / 529 CFM
• Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
• Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
• Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
• Net / Gross Weight: 30.9 / 35.3 Lbs

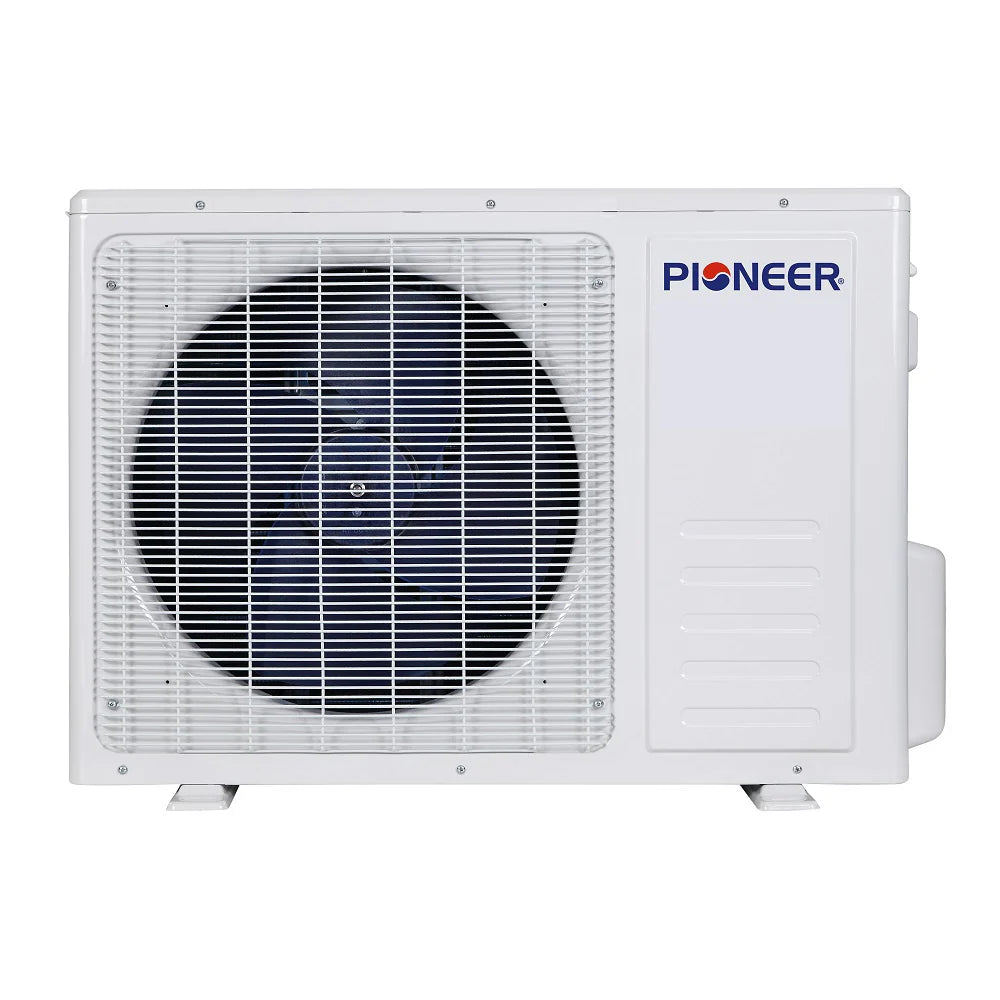

Outdoor Unit Data

• Part Number: YN024GLFI22RPD
• Sound Level: 58 dB(A)
• Net Dimensions (WDH): 35-7/8 x 15-5/8 x 31-5/8 Inches
• Carton Dimensions (WDH): 40-1/2  x 19-1/8 x 33-1/2 Inches
• Net / Gross Weight: 104.7 / 119.1 lbs
• Electrical Circuit Size: 20A (double-pole)

Manuals & Documents

• Sales Brochure
• Technical Brochure
• Submittal Sheet
• User & Installation Manual
• WiFi Pairing Instructions
• Service Manual
• Parts Diagrams
• AHRI Certificate
• Energy Guide
